Product description

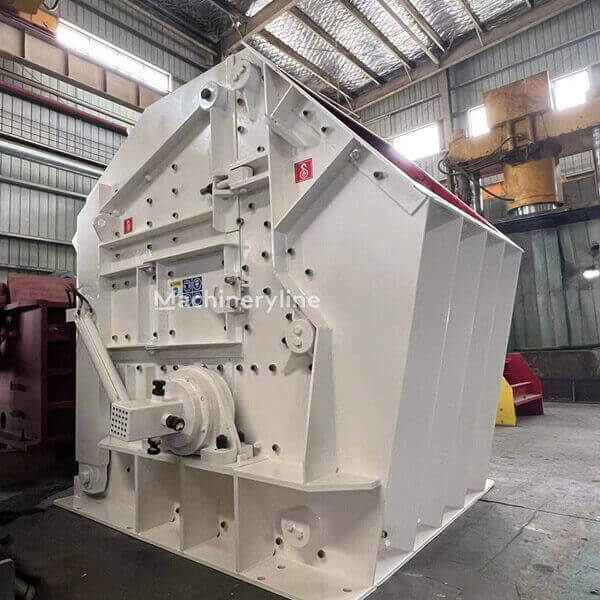

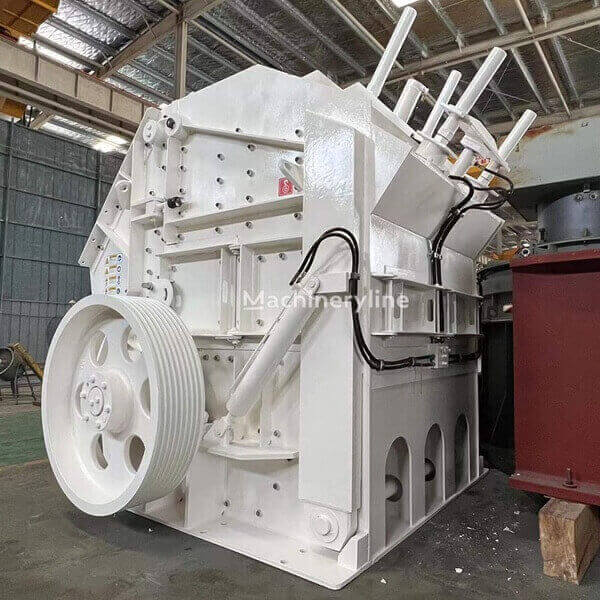

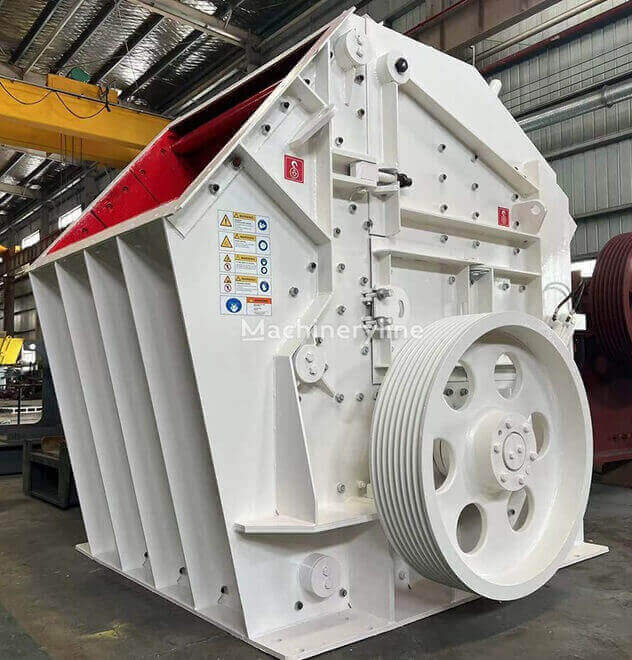

- The MIC hydraulic impact crusher features a 45° feed ramp, replaceable liners, and a hydraulically operable main body.
- Thick impact blocks are secured in replaceable mounting brackets.

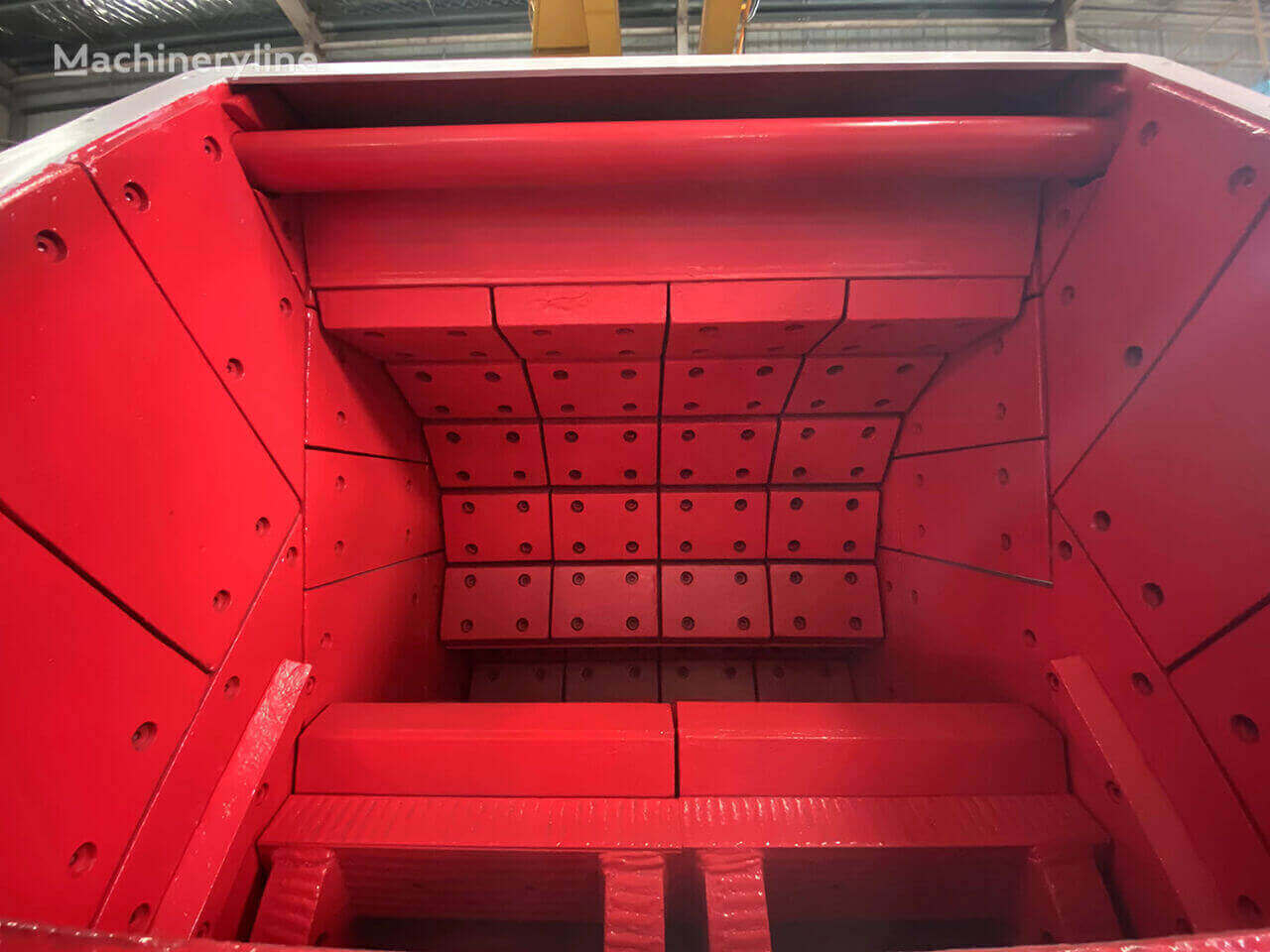

- All liners are interchangeable.
- A forward rotor locking device ensures the safety of personnel changing rotors.
- Production yields well-shaped products with a low proportion of needle-like blades.
Product Date
| Type | Working Diameter of Rotor (mm) | Effective Width of Rotor (mm) | Feed Opening L*W(mm) | Power (KW) | Weight (T) |
|---|---|---|---|---|---|
| MIC102092 | 1020 | 914 | 930×800 | 55-75 | 10.3 |
| MIC133076 | 1020 | 1143 | 1160×800 | 90-110 | 11.5 |
| MIC102115 | 1020 | 1524 | 1540×800 | 110-132 | 13.35 |
| MIC133092 | 1330 | 762 | 1065×778 | 55-75 | 11.4 |
| MIC102152 | 1330 | 914 | 1065×930 | 90-110 | 13.9 |
| MIC133115 | 1330 | 1143 | 1160×1065 | 132-160 | 16 |
| MIC133184 | 1330 | 1524 | 1540×1065 | 185-220 | 19.5 |
| MIC133152 | 1330 | 1848 | 1844×1065 | 220-250 | 22 |
Equipment Performance
| Type | Capacity at Closed Side discharge Opening Size( MM) | |||||
|---|---|---|---|---|---|---|
| 76mm | 63mm | 51mm | 38mm | 25mm | 19mm | |
| MIC102092 | 135 | 120 | 110 | 94 | 80 | 60 |
| MIC133076 | 170 | 150 | 137 | 120 | 100 | 75 |
| MIC102115 | 215 | 186 | 160 | 145 | 116 | 95 |
| MIC133092 | 173 | 152 | 140 | 121 | 102 | 76 |
| MIC102152 | 209 | 184 | 169 | 145 | 124 | 92 |
| MIC133115 | 261 | 230 | 211 | 184 | 155 | 116 |
| MIC133184 | 422 | 382 | 344 | 303 | 254 | 193 |
| MIC133152 | 548 | 496 | 448 | 394 | 330 | 250 |
Product Advantage
I. High Crushing Ratio – Crushing ratio up to 20:1
II. High Productivity – Optimized technical parameters maximize output

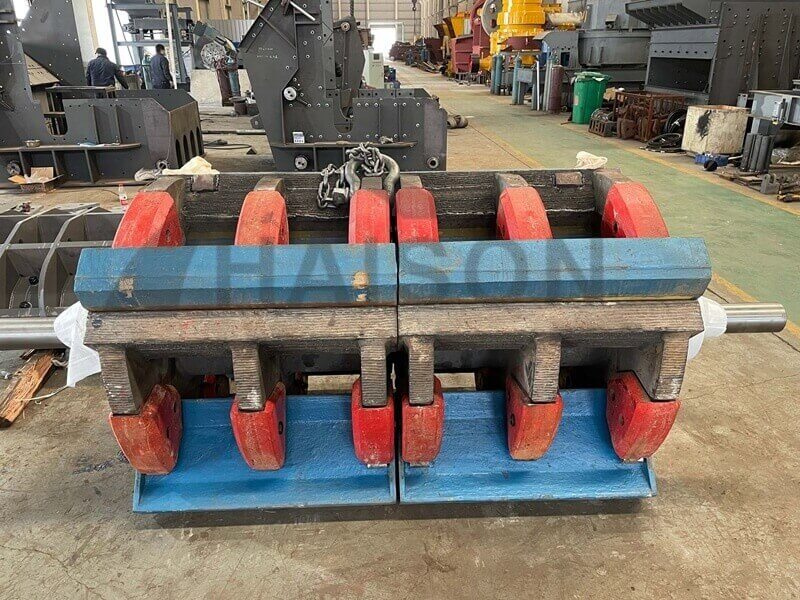

III. Wear-Resistant Parts – Hammer plates, impact liners, and side liners are all made of wear-resistant alloys
IV. Hydraulic Operation – Quick replacement of wear parts
V. Hydraulically Adjustable Discharge Port – Adjusts product particle size, saving time and effort
FAQ
Question: Will we provide pre-sales service?
Answer: Haison is composed of experienced experts, and we will provide suitable solutions promptly according to customer requirements.
Question: Is our after-sales service excellent?
Answer: Haison’s skilled technical personnel can assist with on-site installation, debugging, and training as required. This will enable customers to optimize the performance of their new factory. Dimensional drawings along with service requirements will be provided before equipment delivery. This will enable customers to prepare the venue and allow them to start production promptly.
Haison has sufficient spare parts inventory, and their efficient service personnel will ensure that any necessary parts will be dispatched without delay. Depending on the urgency of the situation, spare parts can be delivered by air, sea, or express delivery. We encourage customers to keep their critical spare parts, such as crusher blades and screens, to ensure optimal machine condition and performance.
Question: Will we provide technical support?
Answer: Haison provides sufficient hardware resources, especially for large-scale production lines, where customers can install, debug, and inspect before delivery.
If you are also interested in other products of our company or have any questions, you can leave your contact information at any time. We will provide you with detailed product information and answer any questions. Meanwhile, you can also take a look at our other products: PE Jaw Crusher 、Jaw Crusher Parts 、Gyratory Crusher.
