Product description
- The PEV hydraulic jaw crusher features a large feed opening and a long crushing chamber, primarily used for coarse crushing.
- The machine body undergoes heat treatment to completely remove residual welding stress, resulting in exceptional robustness.
- The balancing counterweights in moving parts minimize vibration and noise. The eccentric shaft, made of chromium-molybdenum steel and precision-machined, possesses high toughness and impact resistance.
- Heavy-duty roller bearings ensure smooth operation even under heavy loads. Hydraulic operation allows for convenient and rapid gap adjustment, enabling quick and effective crushing of various types of stone.
Product Date
| Model | Feed Opening Max (mm) | Capacity(TPH) | Rotation Speed(RPM) | Power(KW) | Weight(T) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MS2416 | 600×400 | 26-75 | 275 | 30-37 | 6.4 | |||||||||||
| MS3020 | 750×500 | 40-130 | 250 | 45-55 | 9.3 | |||||||||||
| MS3624 | 900×600 | 105-182 | 250 | 55-75 | 14.1 | |||||||||||
| MS4226 | 1050×650 | 150-255 | 260 | 75-90 | 17.2 | |||||||||||
| MS4230 | 1050×750 | 180-294 | 230 | 90-110 | 22.3 | |||||||||||
| MS4832 | 1200×800 | 210-350 | 230 | 110-160 | 26.65 | |||||||||||
| MS4840 | 1200×1000 | 265-402 | 200 | 130-160 | 45 | |||||||||||
| MS5432 | 1350×800 | 250-450 | 200 | 130-160 | 27.55 | |||||||||||
| MS6040 | 1500×1000 | 310-510 | 200 | 185-200 | 50.2 | |||||||||||
| MS6048 | 1500×1200 | 415-630 | 190 | 185-250 | 73.7 |
Product Advantage
I. High-Quality Bearings and Oil Seals
All MS-type hydraulic jaw crushers are equipped with imported or equivalent bearings to ensure strength and stability, smooth machine operation, and extended bearing life through thin oil lubrication.
II. Safety Protection of the Pressure Arm Device

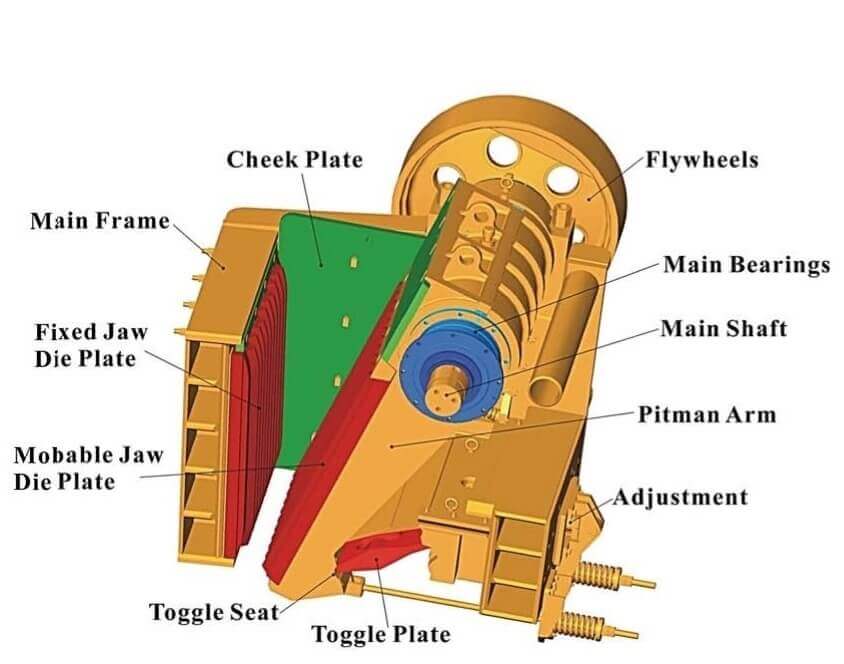

The MS type hydraulic jaw crusher generates crushing force through the forward and backward movement of the movable seat. This movable seat is suspended on an upper eccentric shaft and fixed at the bottom by the pressure arm, pressure arm seat, and pressure arm block, providing complete protection to prevent uncrushable objects from entering the crushing chamber and causing damage, and maintaining a fixed angle of movement for the movable seat.
III. Robust Frame
1. All main unit frames are constructed from premium steel plates and cast steel components, welded under carbon dioxide gas protection and annealed, thus withstanding strong impacts during machine operation.
2. All production processes undergo rigorous quality control. The machine body is surface-treated with steel ball sandblasting, followed by a rust-proof primer to protect the main body. Before completion, each machine undergoes at least 8 hours of no-load operation testing and hydraulic system pressure resistance testing to ensure the highest quality.
IV. Hydraulic Adjustment
The MS type hydraulic jaw crusher is equipped with a hydraulic adjustment device. Utilizing the power oil tank, hydraulic cylinders, and other components, the discharge port setting can be easily changed, shortening the adjustment time and precisely meeting the required particle size standards.
V. High Crushing Capacity
The MS-type hydraulic jaw crusher has a large, deep crushing chamber and an acute crushing angle, thereby achieving a very high crushing rate. In certain specifications, a single-arm crusher can simultaneously meet the product requirements for coarse, medium, and fine crushing.
FAQ
Question: Will we provide pre-sales service?
Answer: Haison is composed of experienced experts, and we will provide suitable solutions promptly according to customer requirements.
Question: Is our after-sales service excellent?
Answer: Haison’s skilled technical personnel can assist with on-site installation, debugging, and training as required. This will enable customers to optimize the performance of their new factory. Dimensional drawings along with service requirements will be provided before equipment delivery. This will enable customers to prepare the venue and allow them to start production promptly.
Haison has sufficient spare parts inventory, and their efficient service personnel will ensure that any necessary parts will be dispatched without delay. Depending on the urgency of the situation, spare parts can be delivered by air, sea, or express delivery. We encourage customers to keep their critical spare parts, such as crusher blades and screens, to ensure optimal machine condition and performance.
Question: Will we provide technical support?
Answer: Haison provides sufficient hardware resources, especially for large-scale production lines, where customers can install, debug, and inspect before delivery.
If you are also interested in other products of our company or have any questions, you can leave your contact information at any time. We will provide you with detailed product information and answer any questions. Meanwhile, you can also take a look at our other products: PE Jaw Crusher 、Jaw Crusher Parts 、Gyratory Crusher.
