Product description

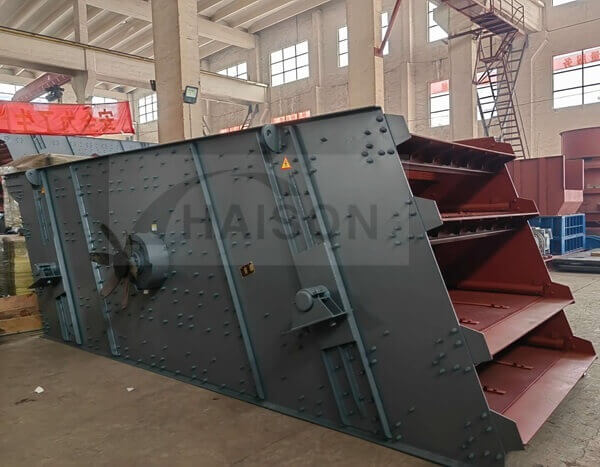

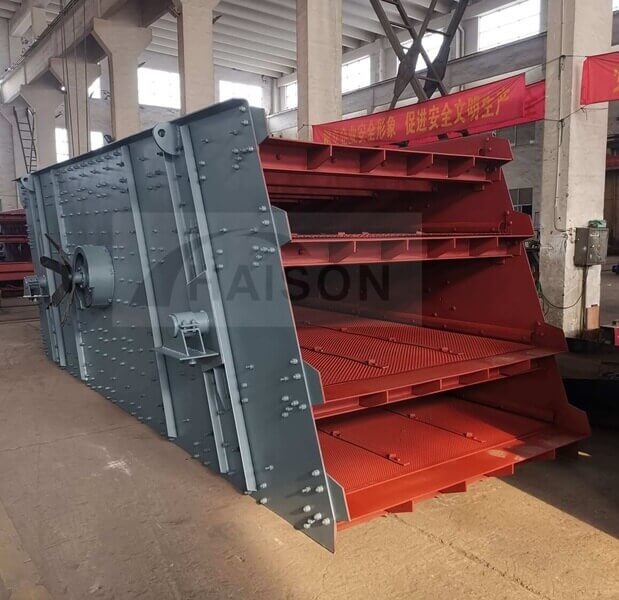

- Efficient incline screen action
Increase your production and profit with the efficient E type incline Screen action. Inclined vibrating screen applies widely and most of the crushing plants adopt this type.
- Simple Construction and easy maintenance
Compared to horizontal vibrating screens, an inclined vibrating screen has only one shaft design; no gears are required. It is simple construction and easy maintenance.
- Superior structure Bearings, Have No Axial Load
Bearings are mounted onto spindles; the shaft only transfers power from the motor to the bearing housings, weights, and bearings. Hence, bearings with housings and weights rotate together on spindles, and heat generated by high-speed rotation of bearings will not transfer to the shaft. Therefore, no substantial extension of the shaft occurs, and consequently the bearings will not be biased by an axial stress. So, the lifetime of the bearings is extended.
- Power transfer via Universal Joint
Unique flexible power transfer via a universal joint, compared to conventional puller/belt way, can minimize bearing load and wear.
- Wide applications
Incline screen has the benefits of a simple structure for easy maintenance and larger throughput capacity compared to horizontal screen. It is widely used in all kinds of aggregates, recycling, and mining industries, etc. The applications of inclined screens are very popular.
- Ultra-robust frame structure
Huck bolts construct frames into a box-shaped structure, high-strength frame plates without welding, and integrated screen decks with solid support to form an ever-robust construction.

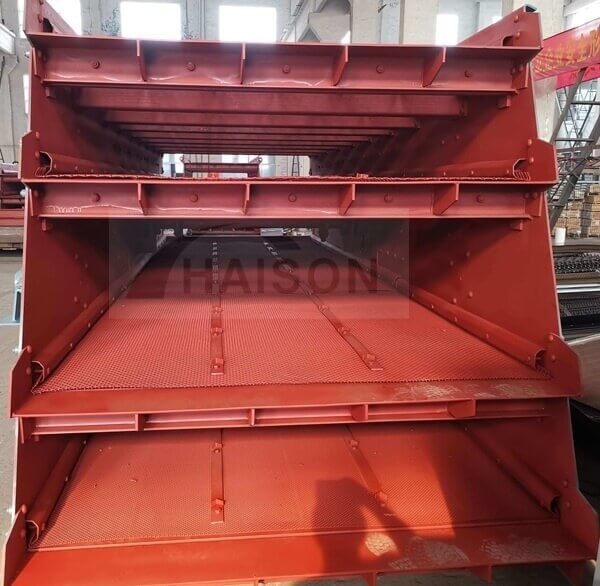

- Screen deck design
The screen deck has an adapted arc-shaped cross beam and features high strength and low deflection. A single-crown deck design can provide maximum screen cloth tension and is fixed only by fixed plates at two sides. This design spreads material evenly across the screen.
- Rubber Spring
Rubber springs are adapted for all series of screens, with the characteristic of reducing noise dramatically during start and stop of the screen.
Technical Date
| Model | Screen deck | Screen size | Max. feed size | Capacity | Vibrating frequency | Power | Weight | Overall dimension |
| (mm) | (mm) | (t/h) | (Hz) | (kW) | (t) | L×W×H (mm) | ||
| 3YA-1245 | 3 | 1200×4500 | 200 | 15-80 | 16.2 | 11 | 4.807 | 5600×1800×1850 |
| 2YA-1548 | 2 | 1500×4800 | 200 | 30-180 | 13-16 | 15 | 5.8 | 5906×2100×1600 |
| 3YA-1548 | 3 | 1500×4800 | 200 | 30-200 | 13-16 | 18.5 | 6.866 | 5906×2100×1900 |
| 4YA-1548 | 4 | 1500×4800 | 200 | 30-250 | 13-16 | 18.5 | 7.36 | 5906×2100×2100 |
| 2YA-1854 | 2 | 1800×5400 | 250 | 50-300 | 16.2 | 22 | 6.769 | 6509×2536×1810 |
| 3YA-1854 | 3 | 1800×5400 | 250 | 50-300 | 16.2 | 30 | 8.285 | 6509×2536×1910 |
| 4YA-1854 | 4 | 1800×5400 | 250 | 50-300 | 16.2 | 30 | 9.796 | 6509×2536×2250 |
| 2YA-2160 | 2 | 2100×6000 | 250 | 100-400 | 16.2 | 30 | 9.68 | 7150×2670×2120 |
| 3YA-2160 | 3 | 2100×6000 | 250 | 100-400 | 16.2 | 30 | 10.206 | 7150×2670×2270 |
| 4YA-2160 | 4 | 2100×6000 | 250 | 100-400 | 16.2 | 30 | 11.8 | 7150×2670×2650 |
| 2YA-2460 | 2 | 2400×6000 | 300 | 150-600 | 16.2 | 30 | 10.2 | 7150×2900×1950 |
| 3YA-2460 | 3 | 2400×6000 | 300 | 150-600 | 16.2 | 37 | 12.35 | 7150×2900×2350 |
| 4YA-2460 | 4 | 2400×6000 | 300 | 150-600 | 16.2 | 45 | 14.25 | 7150×2900×2750 |
FAQ
Question: Will we provide pre-sales service?
Answer: Haison is composed of experienced experts, and we will provide suitable solutions promptly according to customer requirements.
Question: Is our after-sales service excellent?
Answer: Haison’s skilled technical personnel can assist with on-site installation, debugging, and training as required. This will enable customers to optimize the performance of their new factory. Dimensional drawings along with service requirements will be provided before equipment delivery. This will enable customers to prepare the venue and allow them to start production promptly.
Haison has sufficient spare parts inventory, and their efficient service personnel will ensure that any necessary parts will be dispatched without delay. Depending on the urgency of the situation, spare parts can be delivered by air, sea, or express delivery. We encourage customers to keep their critical spare parts, such as crusher blades and screens, to ensure optimal machine condition and performance.
Question: Will we provide technical support?
Answer: Haison provides sufficient hardware resources, especially for large-scale production lines, where customers can install, debug, and inspect before delivery.
If you are also interested in other products of our company or have any questions, you can leave your contact information at any time. We will provide you with detailed product information and answer any questions. Meanwhile, you can also take a look at our other products: PE Jaw Crusher 、Jaw Crusher Parts 、Gyratory Crusher.
