Product description

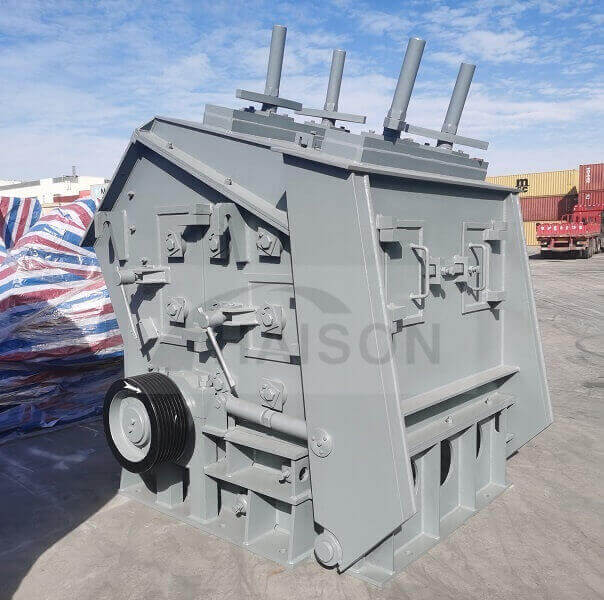

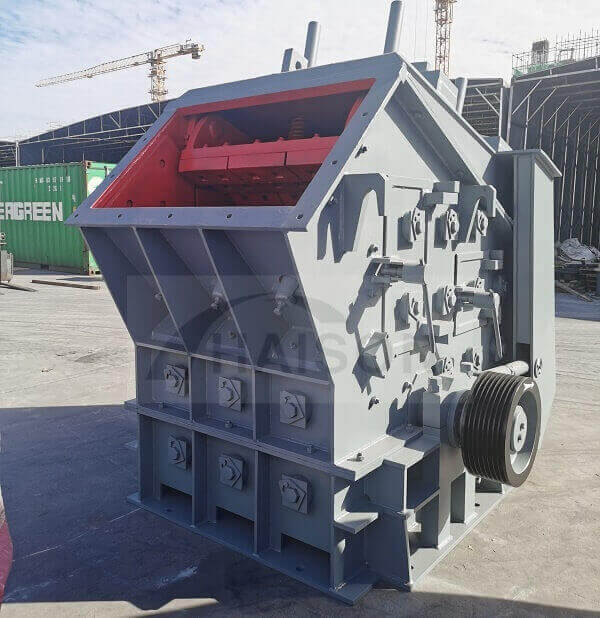

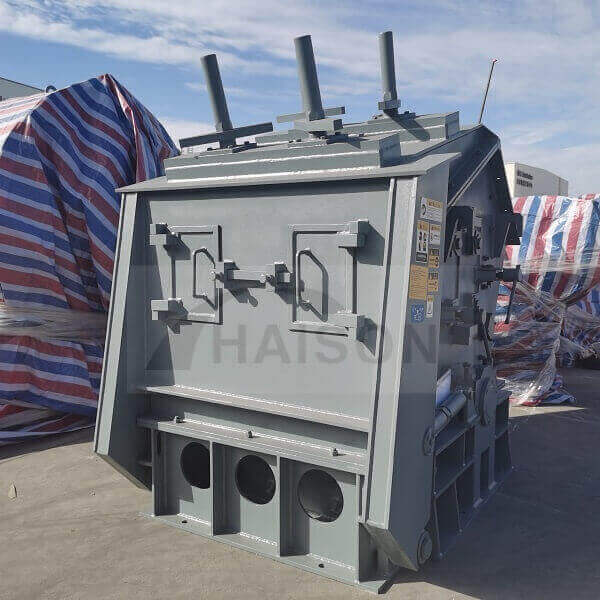

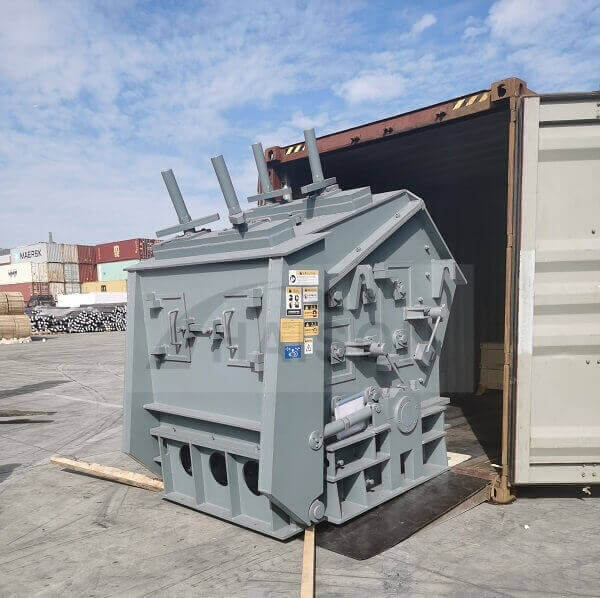

- This series of impact crushers utilizes new manufacturing technology and a unique structural design, producing cubical finished products free of tension and cracks, with excellent particle shape.
- It can process ores and rocks with particle sizes not exceeding 300 mm and compressive strengths not exceeding 350 MPa, suitable for secondary crushing after primary crushing.
- It can produce high-quality concrete aggregate for high-grade highways, water conservancy projects, airports, construction, and other industries.
- Its discharge particle size is adjustable, offering a range of crushing specifications.
Product Date
| Model | Feed Opening Size(mm) | Max feeding size(mm) | Capacity (TPH) | Power(KW) | Weight(T) | Overall size(mm) |
|---|---|---|---|---|---|---|
| PF-1007 | 820×700 | 300 | 24-45 | 55 | 7.63 | 2400x1558x2660 |
| PF-1010 | 1170×720 | 350 | 50-80 | 75 | 10 | 2520x1900x2200 |
| PF-1210 | 1090×465 | 350 | 80-130 | 110 | 14 | 2638x2053x2810 |
| PF-1214 | 1440×465 | 350 | 100-160 | 132 | 14.8 | 2580x2400x2810 |
| PF-1315 | 1532×560 | 350 | 140-200 | 200 | 18.2 | 3007X2748X2556 |
| PF-1316 | 1690×859 | 350 | 150-220 | 200 | 19.5 | 3096X2850X2667 |
| PF-1320 | 2030×800 | 350 | 280-320 | 280 | 29.7 | 3280X3200X2613 |
| PF-1515 | 1580×850 | 350 | 220-280 | 280 | 28.3 | 3550X2835X3217 |
Product Advantage
1. High efficiency and energy saving
The feed port is large, the crushing cavity is high, the crushing functions are complete, and the production efficiency is high. Hard rock is broken, but wear is small, and the overall benefit is high.
2. Unique structure

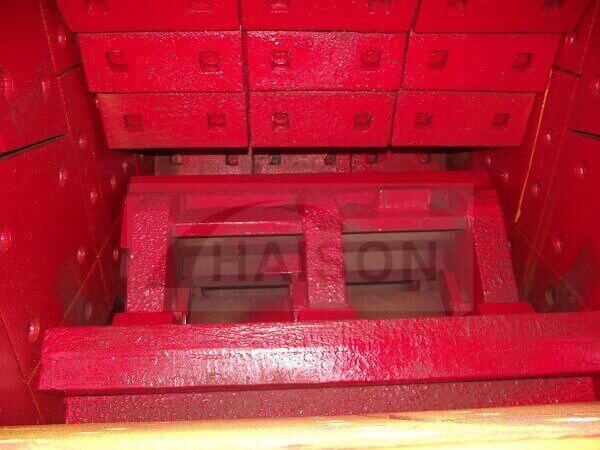

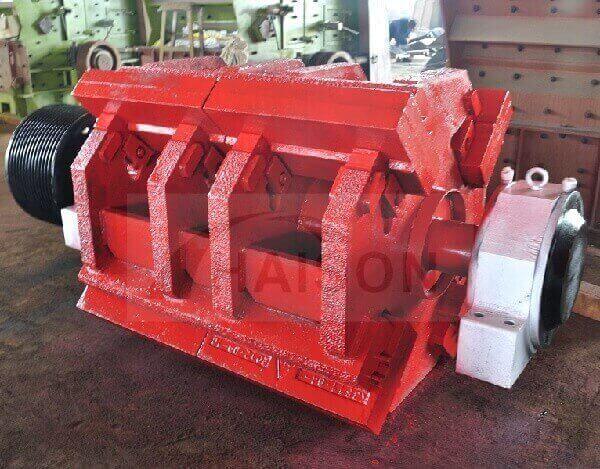

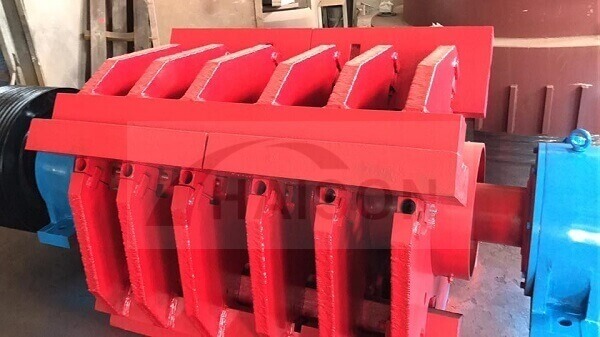

Keyless connection, strong rigidity, large rotor moment of inertia. High chromium blow hammer, impact resistance and wear resistance.
3. The product has a good grain shape
The product is cubic in shape and has good particle shape. The discharge particle size is adjustable to simplify the crushing process.
FAQ
Question: Will we provide pre-sales service?
Answer: Haison is composed of experienced experts, and we will provide suitable solutions promptly according to customer requirements.
Question: Is our after-sales service excellent?
Answer: Haison’s skilled technical personnel can assist with on-site installation, debugging, and training as required. This will enable customers to optimize the performance of their new factory. Dimensional drawings along with service requirements will be provided before equipment delivery. This will enable customers to prepare the venue and allow them to start production promptly.
Haison has sufficient spare parts inventory, and their efficient service personnel will ensure that any necessary parts will be dispatched without delay. Depending on the urgency of the situation, spare parts can be delivered by air, sea, or express delivery. We encourage customers to keep their critical spare parts, such as crusher blades and screens, to ensure optimal machine condition and performance.
Question: Will we provide technical support?
Answer: Haison provides sufficient hardware resources, especially for large-scale production lines, where customers can install, debug, and inspect before delivery.

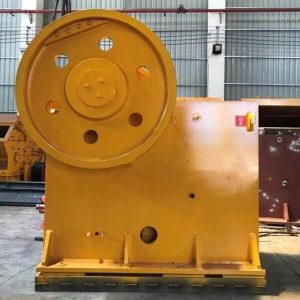

If you are also interested in other products of our company or have any questions, you can leave your contact information at any time. We will provide you with detailed product information and answer any questions. Meanwhile, you can also take a look at our other products: PE Jaw Crusher 、Jaw Crusher Parts 、Gyratory Crusher.
