Product description
- Compared to other jaw crushers of the same type, the Metso Nordberg jaw crusher is lighter, smaller, and easier to install, making it the most economical model for new and retrofit projects.
- Its modular structure is ideal for open-pit mining applications, and it offers exceptional value for underground crushing.
- Whatever your crushing needs, from hard, highly abrasive rock to various recycled materials,
- you can find the best solution with the Metso Nordberg jaw crusher.
Product Technical Date
| Model | Feed opening Length (mm) | Feed opening Width (mm) | Max feeding size (mm) | Shaft Rotation Speed (rpm) | Motor power (kw) | Weight (t) |
|---|---|---|---|---|---|---|
| C80 | 800 | 510 | 400 | 350 | 75 | 9.5 |
| C96 | 930 | 580 | 460 | 330 | 90 | 12 |
| C100 | 1000 | 760 | 610 | 260 | 110 | 23.3 |
| C106 | 1060 | 700 | 560 | 280 | 110 | 17 |
| C110 | 1100 | 850 | 680 | 230 | 160 | 29.5 |
| C116 | 1150 | 800 | 640 | 260 | 132 | 21.5 |
| C120 | 1200 | 870 | 700 | 230 | 160 | 29.5 |
| C125 | 1250 | 950 | 760 | 220 | 160 | 43.9 |
| C130 | 1300 | 1000 | 800 | 220 | 160 | 44 |
| C140 | 1400 | 1070 | 855 | 220 | 200 | 54 |
| C145 | 1400 | 1100 | 880 | 220 | 200 | 63.2 |
| C150 | 1400 | 1200 | 960 | 220 | 200 | 61.5 |
| C160 | 1600 | 1200 | 960 | 220 | 250 | 88.5 |
| C200 | 2000 | 1500 | 1200 | 220 | 400 | 137 |
Product advantages
- Nordberg jaw crusher’s unique modular, non-welded plate frame structure is adopted to avoid reducing the equipment’s service life due to stress concentrations when bearing impact loads.
- Nordberg C125 jaw crusher assembly with high-quality cast steel dynamic frequency, cast soft flywheel, forged heavy eccentric shaft, and large rolling bearing assembly of internationally famous brands is more durable.
- Equipped with a dual-module hydraulic adjustment system. The Metso Jaw Crusher makes adjusting the ore discharge port simpler, safer, and faster. Even when the crusher is idling, the adjustment of the Metso C106 jaw crusher discharge port can be completed. Metso Jaw Crusher can also perform hydraulic cavity cleaning.
- With c160 jaw crusher special external support components and durable and reliable case teaching parts, the Metso C140 jaw crusher is endowed with excellent applicability, economy, and low operating costs. Metso c125 jaw crusher has the advantages of simple installation, large capacity, high intelligence, safety and reliability, and low maintenance cost in the later stage.
Product Parts Material
| No. | Part name | Quantity | Material | Manufacturer |
|---|---|---|---|---|
| 1 | Side panels | 2 | Q355D 30Mn | WISCO |

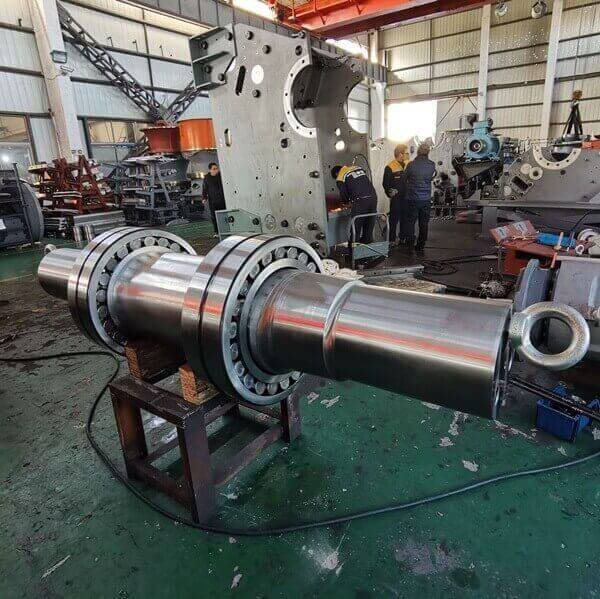

| 2 | Main shaft | 1 | 42CrMo was used to modulate HB217-255 | Our factory |
| 3 | Move the jaw | 1 | ZG20S i Mn | Our factory |
| 4 | Front gear | 1 | ZG20S i Mn | Our factory |
| 5 | Back gear | 1 | ZG20S i Mn | Our factory |
| 6 | Pulley | 2 | HT 250 | Our factory |
| 7 | Bearing | 4 | 23164CC/C3W33 | NSK/SKF |
| 8 | Jaw Plate | 2 | ZGMn13Cr2 | Our factory |
| 9 | Spring | 1 | 60Si2Mn | Outsourcing |
| 10 | Elbow plate | 2 | HT 250 | Our factory |
- Nordberg jaw crusher is designed to be modular, saving installation time and cost. Installation can be completed within a few days to minimize on-site engineering and manufacturing.
- The optional C110 automation system can be used to control the Nordberg C140 jaw crusher in the series of Metso Jaw Crushers to achieve remote monitoring and adjustment settings for feeders, crushers, and conveyors. Through this method, the Metso C106 jaw crusher can be remotely controlled, making Metso Jaw Crusher easier to operate and safer.
- Based on long-term experience and comprehensive testing at customer sites, the key areas of the Nordberg jaw crusher series Metso C106 jaw crusher are equipped with wear protection. The design of vulnerable components and components is easy to access and replace.
- Based on existing crushers, nordberg jaw crusher is easy to install, with remote monitoring, automation, and discharge port adjustment. Optional components can be transported separately.
FAQ
Question: Will we provide pre-sales service?
Answer: Haison is composed of experienced experts, and we will provide suitable solutions promptly according to customer requirements.
Question: Is our after-sales service excellent?
Answer: Haison’s skilled technical personnel can assist with on-site installation, debugging, and training as required. This will enable customers to optimize the performance of their new factory. Dimensional drawings along with service requirements will be provided before equipment delivery. This will enable customers to prepare the venue and allow them to start production promptly.
Haison has sufficient spare parts inventory, and their efficient service personnel will ensure that any necessary parts will be dispatched without delay. Depending on the urgency of the situation, spare parts can be delivered by air, sea, or express delivery. We encourage customers to keep their critical spare parts, such as crusher blades and screens, to ensure optimal machine condition and performance.
Question: Will we provide technical support?
Answer: Haison provides sufficient hardware resources, especially for large-scale production lines, where customers can install, debug, and inspect before delivery.
If you are also interested in other products of our company or have any questions, you can leave your contact information at any time. We will provide you with detailed product information and answer any questions. Meanwhile, you can also take a look at our other products: PE Jaw Crusher 、Jaw Crusher Parts 、Gyratory Crusher.
